Precision planetary reducer

Powerful High Torque High Precision Helical Planetary Gearbox


Product Description

OVERVIEW
Output torque
 14 Nm - 2000 Nm

Ratios:
1-stage :3/4 / 5 /6 / 7 /8 / 10
2-stage :15/20 / 25 /30/ 35 / 40 / 50 /60 / 70 /80/100
Low backlash
1-stage : ≤1 arcmin / ≤3 arcmin / ≤5 arcmin
2-stage : ≤3 arcmin / ≤5 arcmin / ≤7 arcmin
High efficiency
1-stage : >= 97%
2-stage : >= 94%

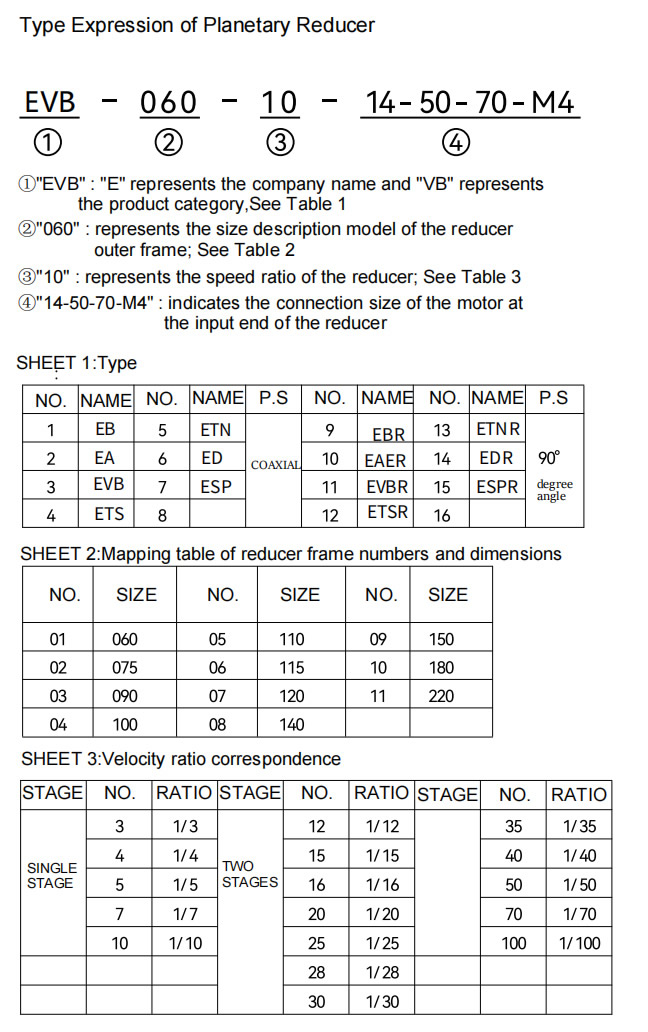

SIZE
EB-042/060/090/115/140/180/220
EBR-042/060/090/115/140/180/220
ED-042/060/090/115/140/180/220
EDR-042/060/090/115/140/180/220
EVB-042/060/090/115/140/180/220
EVBR-042/060/090/115/140/180/220
EAE-042/060/090/115/140/180/220
EAER-042/060/090/115/140/180/220

APPLICATION
This planetary gearbox has been generally applied in fields of machine tools, industrial robots arm, loader robots, printing machines, medical equipment, measuring equipment, gantry robots, automotive industry, sealing machines, etc.

features
1, This planetary gearbox features of high precision and low backlash.
2, This planetary gearbox adopts integral ball bearings to realize high rigidity and high torque
3,Due to the use of tapered needle roller bearing, it achieve the high load capacity.
4,This planetary gearbox can be matched with any brands of motors.
5,Free maintenance and long service life.

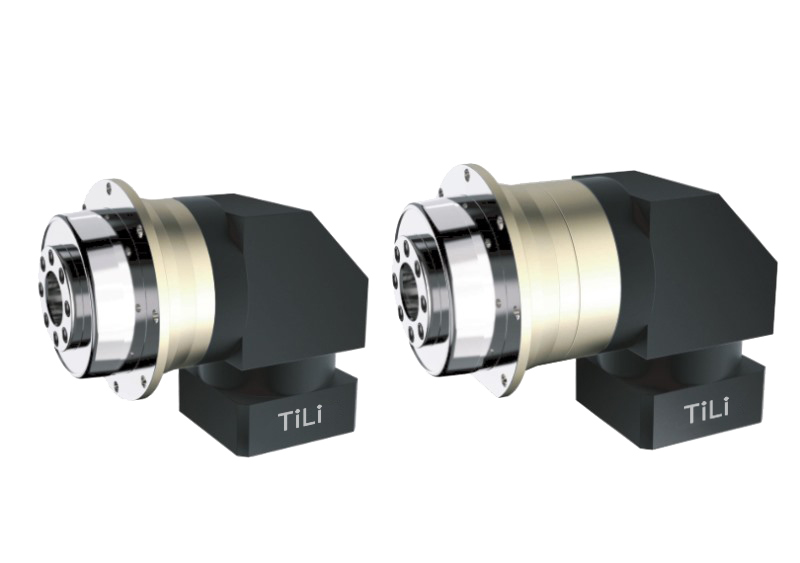

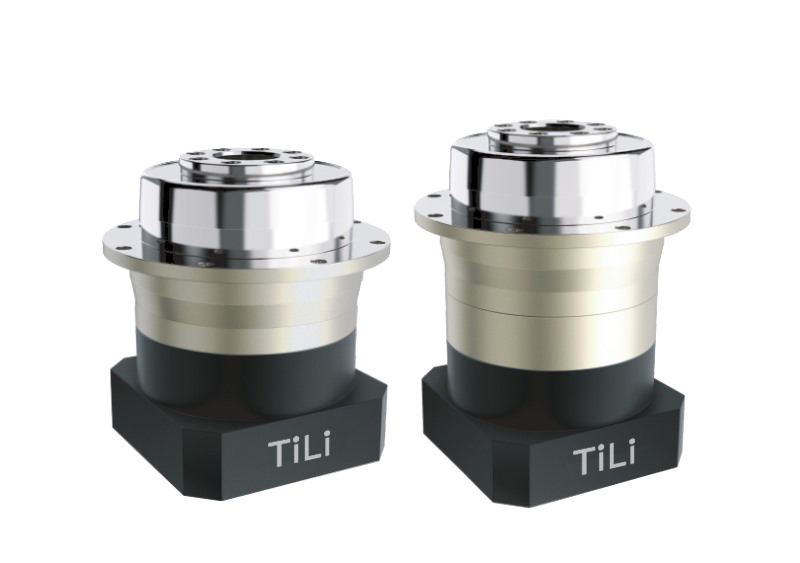

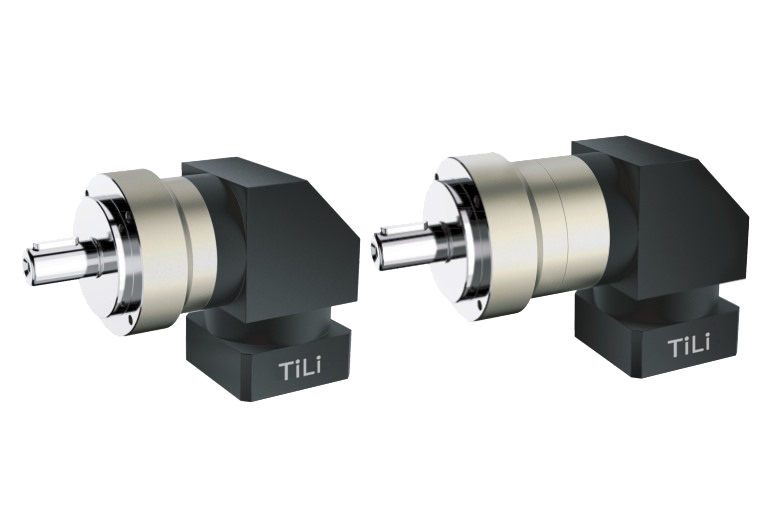

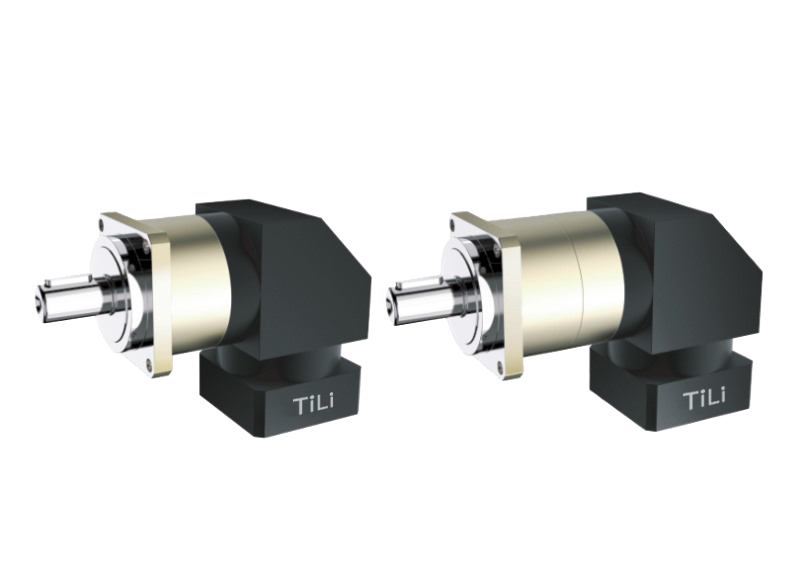

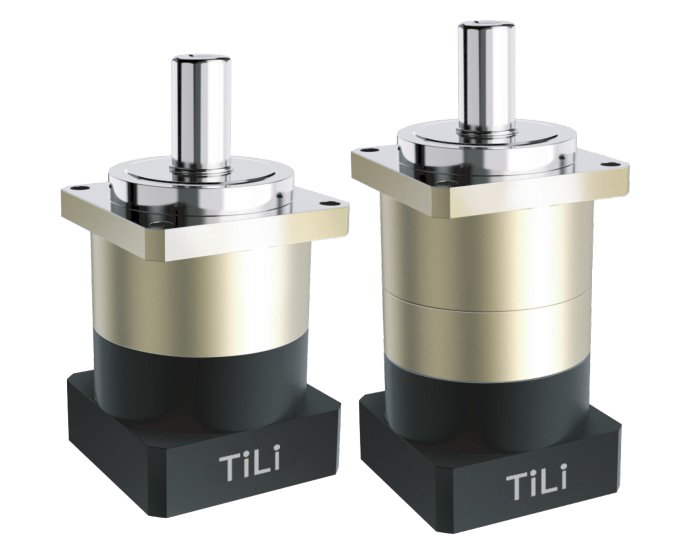

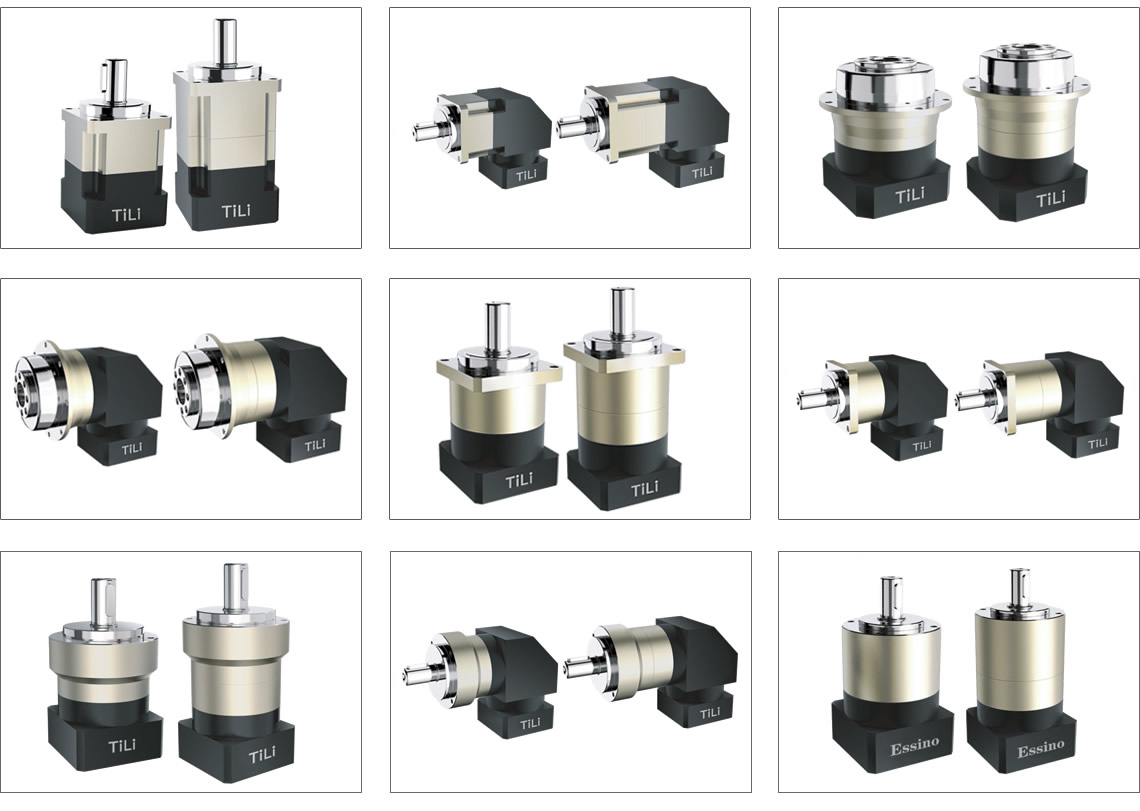

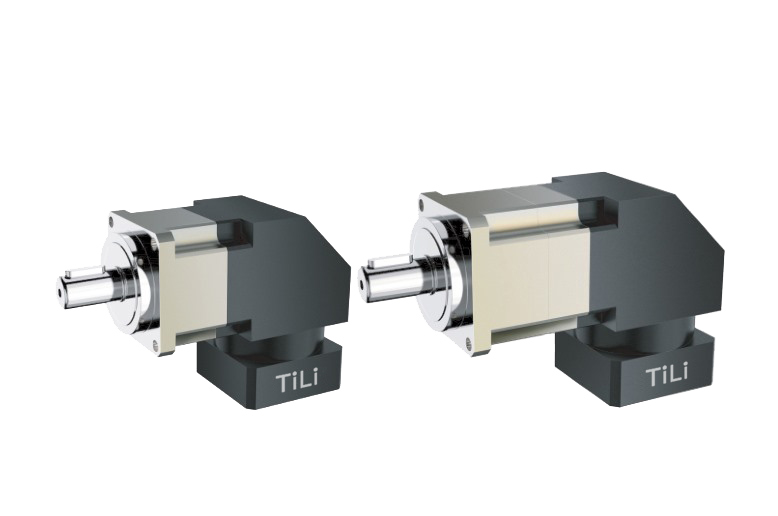

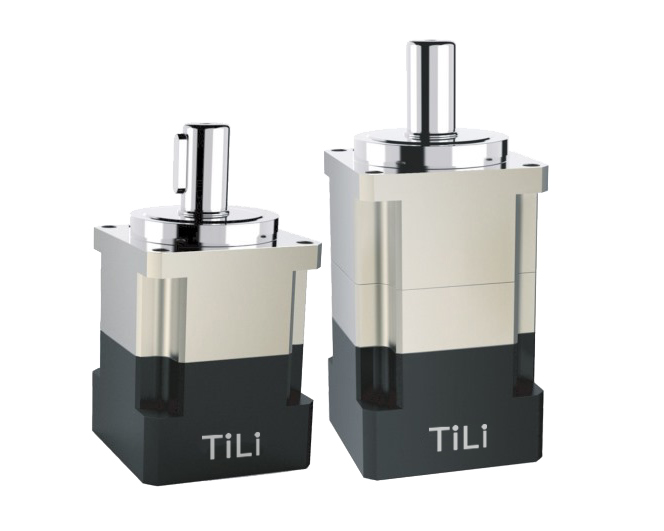

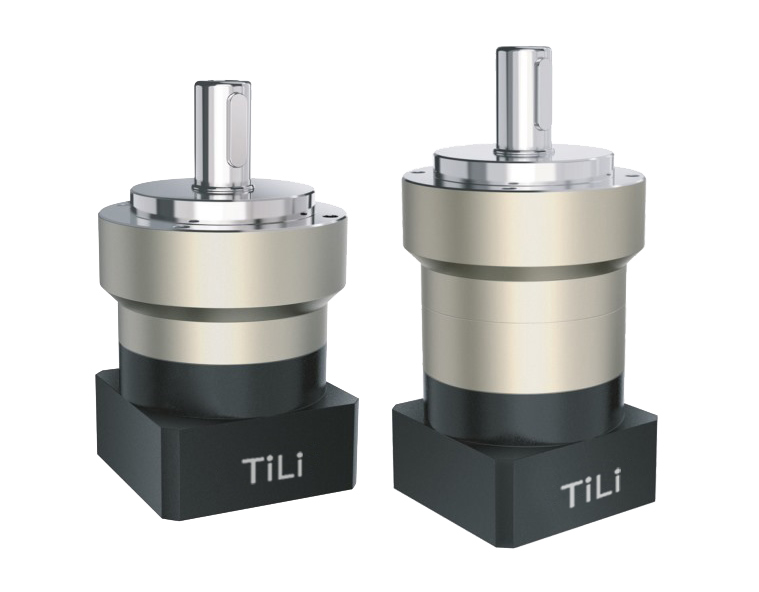

Detailed Photos

Certifications

Packaging & Shipping

Installation Instructions

Company Profile

< ABOUT TILI

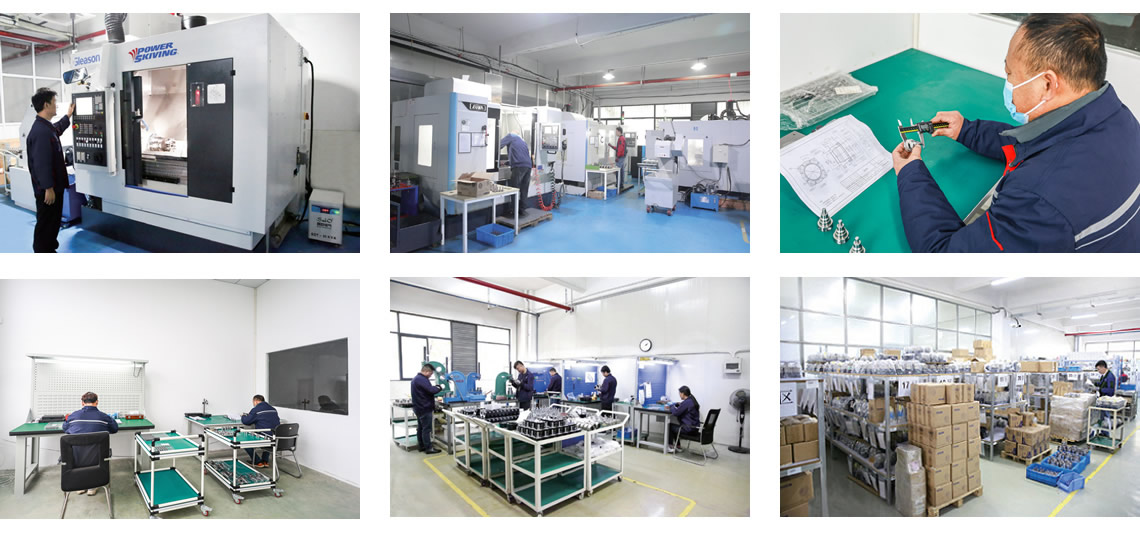

< WORKSHOP

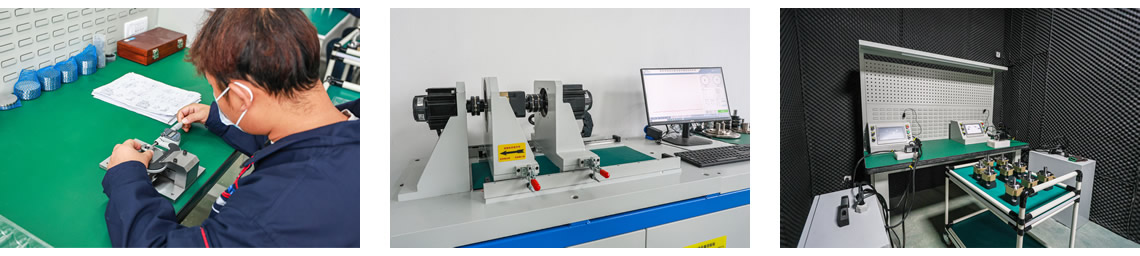

< QUALITY CONTROL

FAQ

Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing various series of reducer.

Q 2:Can you do OEM?
A:Yes, we can. We can do OEM  for all the customers .if you want to order NON-STANDERD speed reducers,pls provide Drafts, Dimensions,      Pictures and Samples if possible.

Q 3: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.

Q 4: Do you have inspection procedures for reducer?
A:100% self-inspection before packing.

Q 5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

Q 6:How to choose a gearbox? What if I don't know which gear reducer I need?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide,the technical information of required output torque, output speed and motor parameter etc. Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

Q 7: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, Size , Transmission Ratio, input and output type, input flange, mounting position, motor information and shaft deflection etc. b)Housing color.c) Purchase quantity. d) Other special requirements

Q 8:What is the payment term?
A:You can pay via T/T(30% in advance as deposit before production +70% before delivery
