Twin screw gearbox

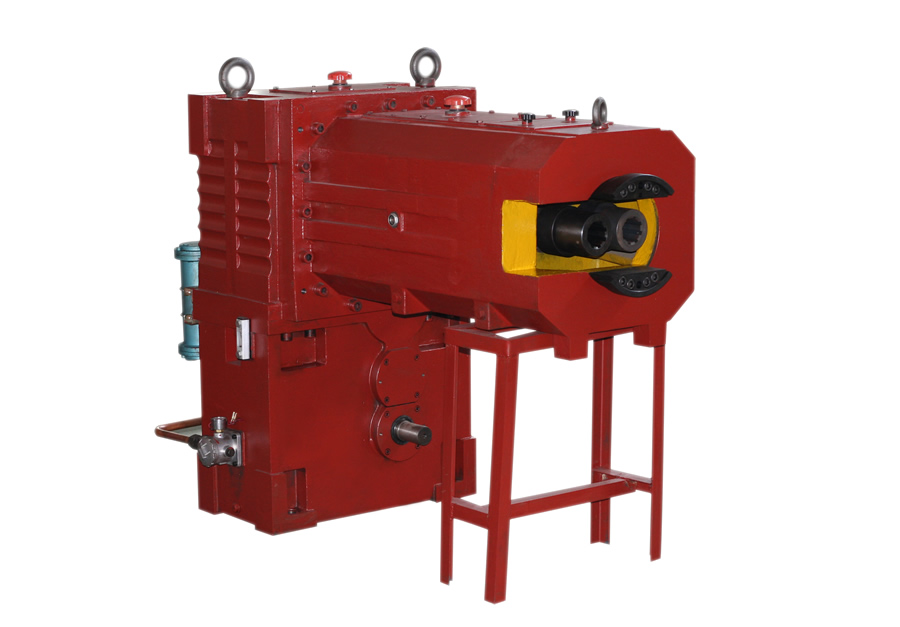

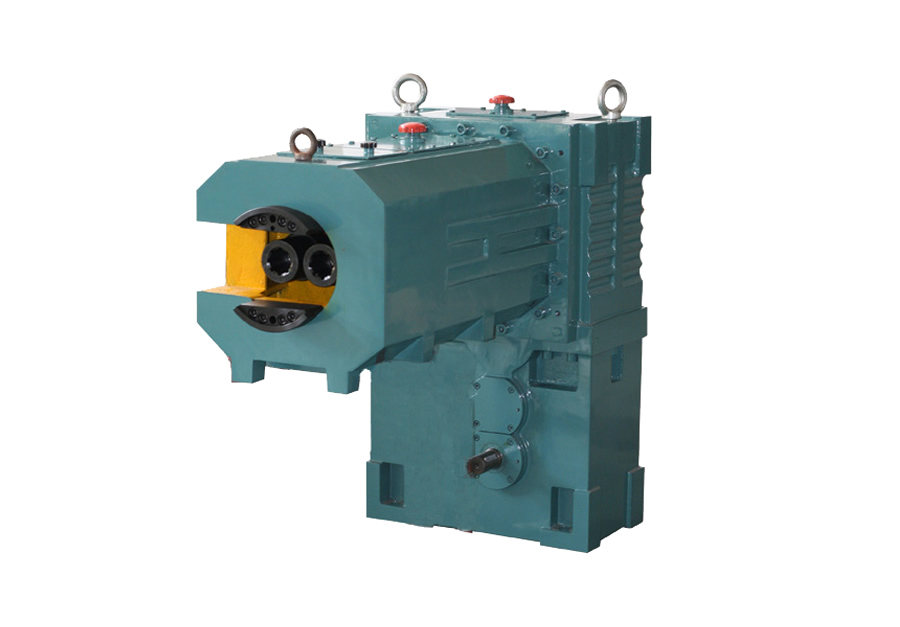

Gearbox for SZL series conical twin screw extruder

1、 Overview

SZL series vertical cone twin screw extruder reducer is a special transmission device matched with cone twin screw plastic extruder. The gearbox is composed of reduction gearbox and distribution gearbox, which can be output to distribution gearbox after motor power reduction and torque increase, and then double shafts (the included angle of two shafts is the same as that of screw) are driven by a pair of small bevel angle spiral gears with 1:1 transmission ratio in distribution gearbox to drive screw to rotate in a different way.

2、 Product features

1. The gear material is made of high-quality high-strength low-carbon alloy steel. After carburizing and quenching treatment, the gear grinding process is adopted, which has the advantages of strong bearing capacity, low noise, smooth operation and high transmission efficiency.

2. The material of the distribution box is ductile iron, the bevel gear is high strength gear, and the serpentine cooling coil is arranged inside.

3. The maximum input speed of gearbox is generally not greater than 1500rpm.

4. The working environment temperature is - 10 ~ 40 ° C. when it is lower than 0 ° C, the lubricating oil should be heated to 10 ° C before starting.

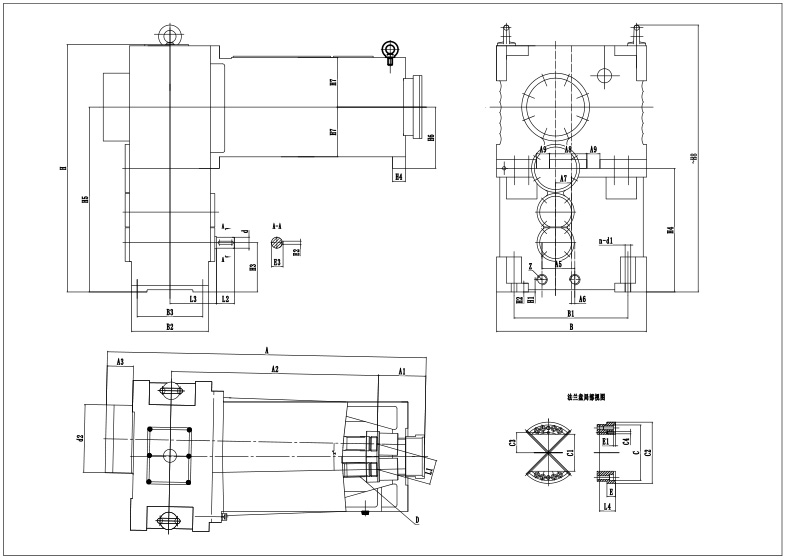

Model A B H A1 A2 A3 A4 A5 A6 A7 A8
SZL55 1370 626 1042 190 910 92 60 150 35 71 170
SZL65 1420 680 1125 205 945 120 60 150 15 72.017 200



Model A9 H1 H2 H3 H4 H5 H6 H7 H8 B1 B2
SZL55 60 56 40 200 522 782 260 210 1150 490 334
SZL65 60 60 45 225 565 845 280 225 1230 520 350



Model B3 C C1 C2 C3 C4 D d n-d1 d2 E
SZL55 280 Ø230h7 160 .Ø318 95 .Ø16 6-60*54*14 Ø42h6 . 4-Ø22  . Ø260 40
SZL65 300 Ø253h7 170 .Ø280 92 .Ø12 8-65*56*10 Ø50h7 . 4-Ø26 . Ø310 40



Model E1 E2 E3 L L1 L2 L3 L4 r Z
SZL55 10 12 45 1444 108.535 82 190 75 2°36′14" 2-ZG1/2
SZL65 10 14 53.5 1494 115.371 82 213 75 2°11′16" 2-ZG1/2

Main technical performance table of SZL series gearbox

Parameters / specifications SZL55 SZL65
Input speed r/min 1500 1500
Output speed r/min 37.5 39.1
Input power KW 30 37
Single shaft output torque N.m 3820 4518
Distribution shaft angle 2°36'14" 2°11'16"



Certifications


Packaging & Shipping



Company Profile

< ABOUT TILI

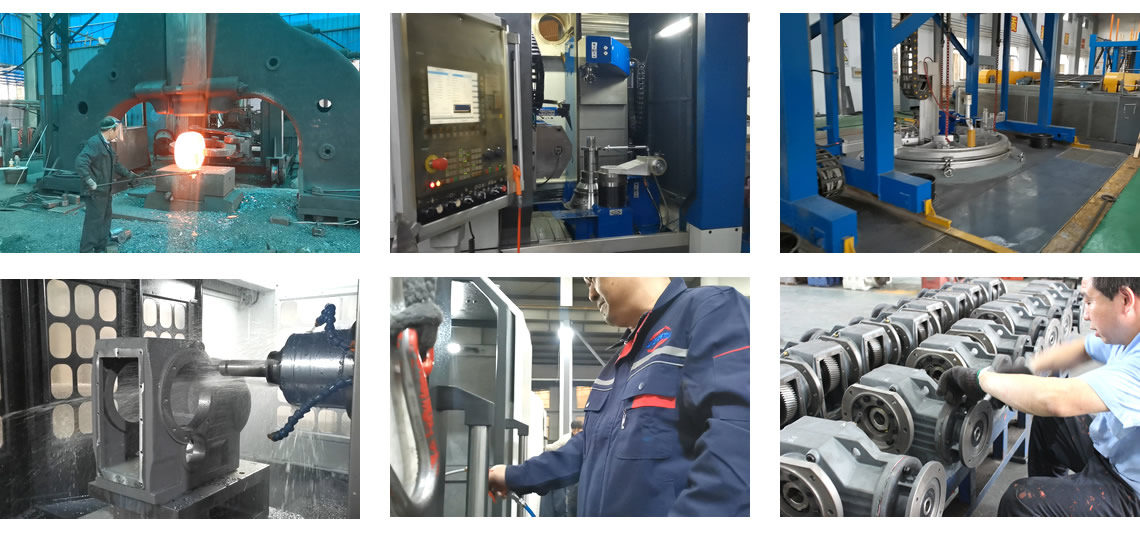

< WORKSHOP

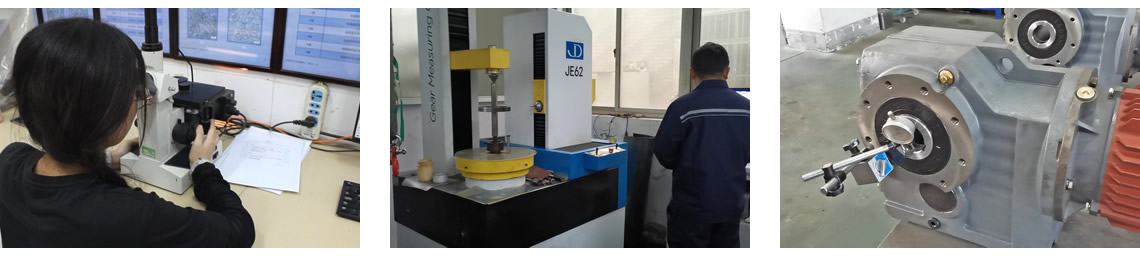

< QUALITY CONTROL

FAQ

Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing various series of reducer.

Q 2:Can you do OEM?
A:Yes, we can. We can do OEM  for all the customers .if you want to order NON-STANDERD speed reducers,pls provide Drafts, Dimensions,      Pictures and Samples if possible.

Q 3: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.

Q 4: Do you have inspection procedures for reducer?
A:100% self-inspection before packing.

Q 5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

Q 6:How to choose a gearbox? What if I don't know which gear reducer I need?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide,the technical information of required output torque, output speed and motor parameter etc. Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

Q 7: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, Size , Transmission Ratio, input and output type, input flange, mounting position, motor information and shaft deflection etc. b)Housing color.c) Purchase quantity. d) Other special requirements

Q 8:What is the payment term?
A:You can pay via T/T(30% in advance as deposit before production +70% before delivery
