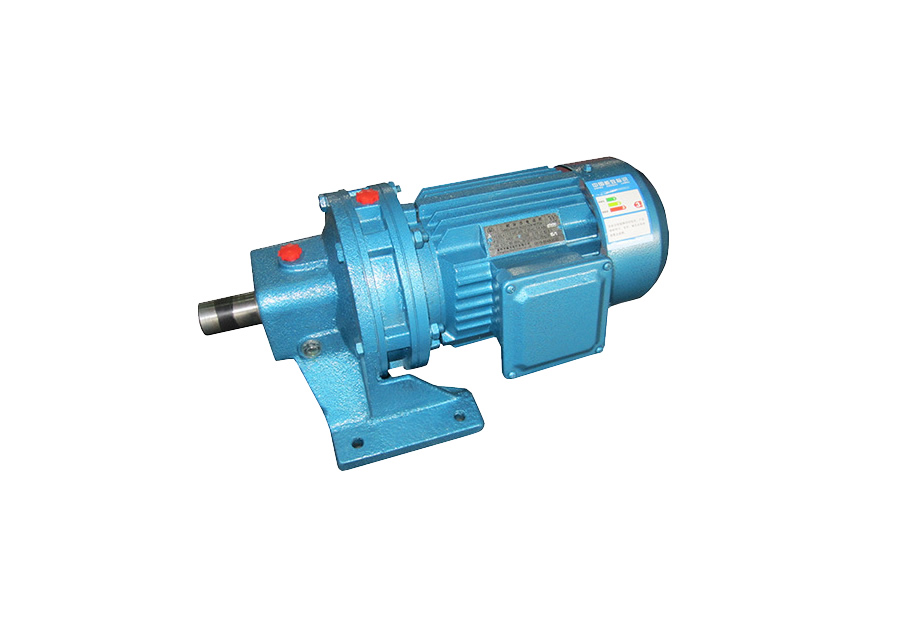

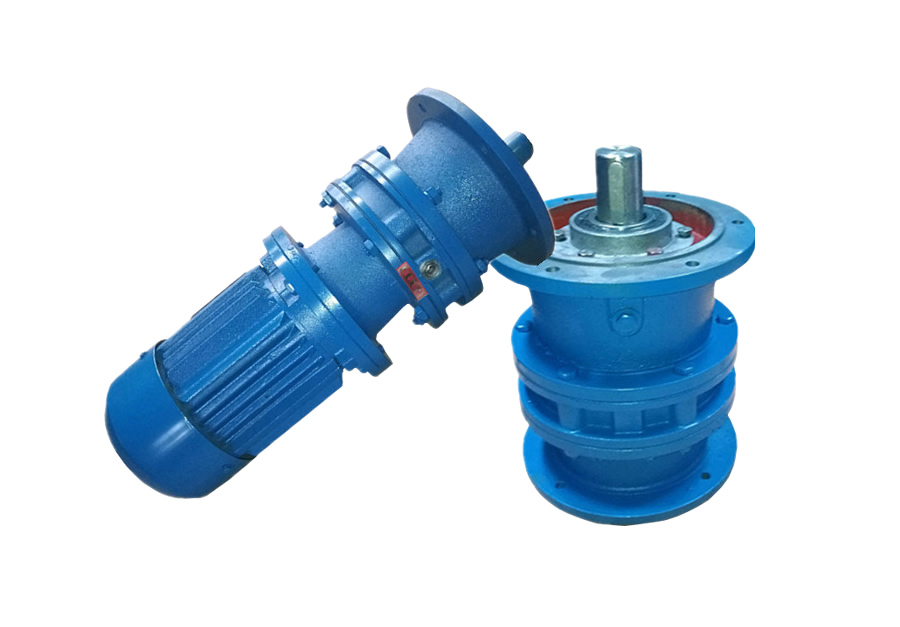

Cycloidal drive ( Cycloidal speed reducer, Cycloidal gearbox) according to a few teeth difference planetary transmission principle is designed . Widely used in food machinery, chemical machinery, mechanical miners etc

In order to choose the right gearbox, you just need to do two steps as follow:

1. Check the dimensions of the table according to drawing:

Item NO.	Contour Dimensions						Installation Dimensions									Shaft End Dimensions
	M	W	Z		I	X	H	E	F	P	Q	S	T	N	G	B	C	D	L	b	c	d	Y
	M	W	BW	BWD	I	X	H	E	F	P	Q	S	T	N	G	B	C	D	L	b	c	d	Y
BW、BWY、BWD
B10	120	185	214	165	190	168	100	93	15	90	150	M8	35	4	11	8	33	30	35	5	17	15	22
B11	160	280	263	194	250	200	120	125	15	110	240	M8	55	4	13	10	38	35	56	6	20.5	18	35
B12	200	320	320	246	296	240	140	144	20	150	280	M8	60	4	13	14	48.5	45	68	6	24.5	22	40
B13	250	390	390	294	355	300	160	158	25	200	340	M12	75	4	17	16	59	55	80	8	33	30	55
B14	380	400	465	356	430	340	200	155	25	320	340	M12	80	4	22	20	74.5	70	100	10	38	35	62
B15	440	470	544	431	513	420	240	159	32	340	440	M16	80	4	22	25	95	90	120	14	48.5	45	70
B16	520	560	700	520	605	500	280	188	35	440	500	M20	90	4	26	28	106	100	139	14	53.5	50	80
B17	600	690	791	594	706	616	325	225	40	500	630	M24	105	6	26	28	116	110	150	16	59	55	90
B18	810	880	1065	814	880	740	420	324	50	660	800	M30	160	6	32	32	137	130	202	20	74.5	70	120
B19	1040	1160	1462	1151	1160	1000	540	485	60	840	1050	M42	200	6	45	45	190	180	330	25	95	90	150
XW、 XWY、 XWD
X2	120	210	209	190	190	168	100	101	15	90	180	M8	45	4	12	8	28	25	34	5	17	15	22
X3	150	290	263	270	270	200	140	151	20	100	250	M8	55	4	16	10	38	35	56	6	20.5	18	35
X4	195	330	320	316	316	240	150	166	22	145	290	M8	65	4	16	14	48.5	45	72	6	24.5	22	40
X5	260	420	426	356	356	300	160	206	25	150	370	M12	75	4	16	16	59	55	91	8	33	30	55
X6	335	430	484	425	425	340	200	123	30	275	380	M12	75	4	22	18	69	65	89	10	38	35	62
X7	380	470	512	484	484	420	220	145	30	320	420	M16	95	4	22	22	85	80	109	12	43	40	65
X8	440	530	583	514	514	420	250	155	35	380	480	M16	120	4	22	25	95	90	120	14	48.5	45	70
X9	560	620	723	614	614	500	290	187	40	480	560	M20	120	4	26	28	106	100	141	14	53.5	50	80
X10	600	690	791	706	706	616	325	225	40	500	630	M24	105	6	26	28	116	110	150	16	59	55	90
X11	810	880	1065	880	880	740	420	324	50	660	800	M30	160	6	32	32	137	130	202	20	74.5	70	120
X12	1040	1160	1462	1160	1160	1000	540	485	60	840	1050	M42	200	6	45	45	190	180	330	25	95	90	150

2. Tell us the motor power and speed ratio

Then, We will recommend the right gearbox for you !

More Details, please contact us online or leave message.
