Geared Motors

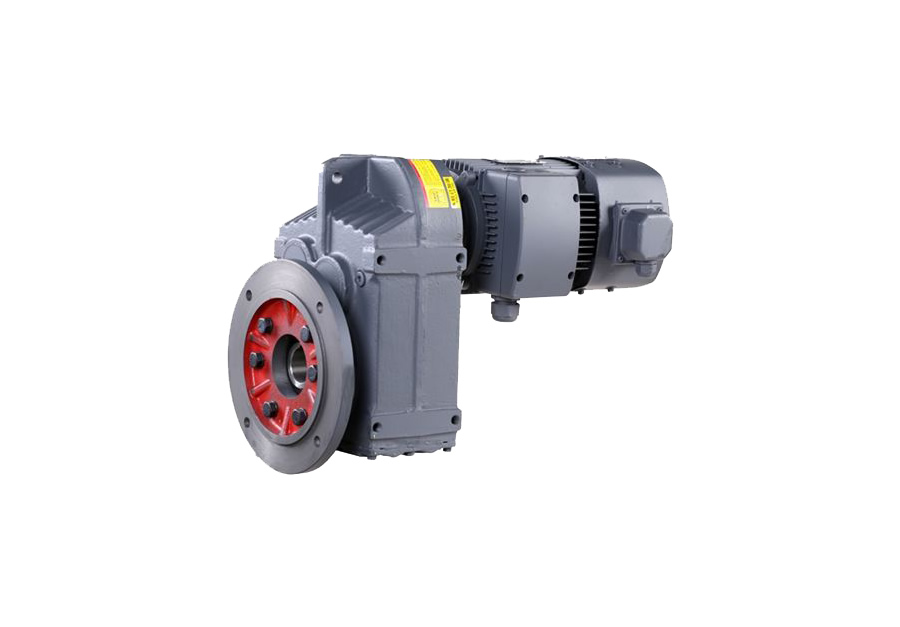

F Series Shaft Mounted Geared Motor

Product ID：Geared Motors
Tel: 0086-519-83318228
Email: cztili@aliyun.com
13358163958
Whatsapp: 13358160396
18452420136
Time: 2021-09-13 03:11:01

1. F series parallel shaft helical gear reducers are manufactured in accordance with international technical requirements, with high scientific and technological content.

2. Space saving, reliable and durable, high overload capacity, power up to 90kw.

3. F parallel axis helical gear reducer has the advantages of low energy consumption, superior performance and high efficiency of more than 95%.

4. Small vibration, low noise, high energy saving, selection of high-quality steel, steel cast iron box, gear surface after high-frequency heat treatment.

5. After precision machining, the shaft parallelism and positioning accuracy are ensured. All these constitute the reducer of gear drive assembly, which is equipped with all kinds of motors, forming mechatronics, and fully ensuring the use quality of reducer motor products. The quality is stable.

6. The gear is made of 20CrMnTi alloy steel. After carburizing and quenching, the tooth surface hardness reaches hrc58 ° to 62 ° and the grinding accuracy reaches 6-5 degrees.

Model	Shaft Dia.(mm)		Center Height for HORZ	Flange EXT Dia. for Vertical(mm)	Power(kw)	Ratio	Permitted Torque(Nm)
Model	Solid	Hollow	Center Height for HORZ	Flange EXT Dia. for Vertical(mm)	Power(kw)	Ratio	Permitted Torque(Nm)
F37	25	30	70	160	0.12~3	4~138	180
F47	35	35	80	200	0.12~5.5	4~175	360
F57	35	40	100	250	0.18~7.5	4~197	420
F67	40	40	100	250	0.37~7.5	4~197	700
F77	50	50	120	300	0.75~11	4~197	1350
F87	60	60	155	350	1.5~22	4~193	2500
F97	70	70	180	450	2.2~30	4~203	3700
F107	90	90	200	450	3~45	4~205	6500
F127	100	100	240	550	5.5~90	4~202	10000
F157	120	120	270	660	11~160	4~190	18000
