Geared Motors

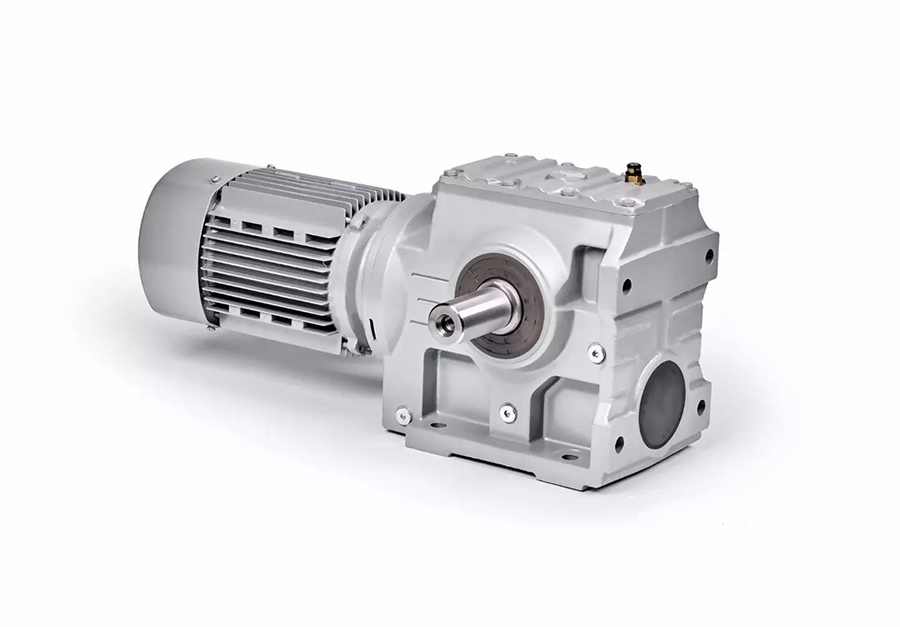

S Series Worm Geared Motor

Product ID：Geared Motors
Tel: 0086-519-83318228
Email: cztili@aliyun.com
13358163958
Whatsapp: 13358160396
18452420136
Time: 2021-09-13 03:10:39

1. S series helical gear worm reducer has a high technology content, with the combination of helical gear and worm to improve the torque and efficiency of the machine. This series of products have complete specifications, wide speed range, good versatility, and can adapt to all kinds of installation methods, with safe and reliable performance and long service life. They have implemented the requirements of international standards.

2. The concave convex surface of the body has the function of heat dissipation, strong vibration absorption, low temperature rise and low noise.

3. The machine has good sealing performance and strong adaptability to working environment.

4. The machine has high transmission accuracy, especially suitable for working in the frequent starting occasions. It can connect all kinds of reducers and configure all kinds of motor drive, and can be installed in the 90 degree transmission operation position.

5. The key parts of the motor are made of high wear-resistant materials, and after special heat treatment, it has the characteristics of high machining accuracy, stable transmission, small volume, large bearing capacity, long service life and so on.

6. The reducer can be equipped with various types of motors, forming a mechatronics, fully ensuring the quality of the product.

7. The gear is made of 20CrMnTi alloy steel. After carburizing and quenching, the tooth surface hardness reaches hrc58 ° to 62 ° and the grinding accuracy reaches 6-5 degrees;

8. The products are widely used in petrochemical equipment, mining construction equipment, printing and packaging equipment, lifting and conveying equipment, etc.

Model	Shaft Dia.（mm）		Center Height for HORZ(mm)	Flange EXT Dia. for Vertical（mm）	Power(kw)	Ratio	Permitted Torque(Nm)
Model	Solid	Hollow	Center Height for HORZ(mm)	Flange EXT Dia. for Vertical（mm）	Power(kw)	Ratio	Permitted Torque(Nm)
S37	20	20	88	160（120）	0.12~0.55	24~204	100
S47	25	25(30)	100	160	0.18~0.75	24~204	150
S57	30	30(35)	112	200	0.75~1.5	24~204	250
S67	35	40(45)	140	250（200）	0.75~3	24~285	460
S77	45	50(60)	180	300（250）	0.75~7.5	24~385	1200
S87	60	60(70)	225	350	1.1~11	24~389	2000
S97	70	70(90)	280	450	1.5~18.5	24~389	3500
