Single screw gearbox

Gearbox for ZLYJ series Single Screw Extruders

Product ID：Single screw gearbox
Tel: 0086-18168811055
Email: sales@cztili.com
13358163958
Whatsapp: 13358160396
18452420136
Time: 2021-09-13 03:13:09

Model NO.	Zlyj Series	Type	Cylindrical Gear Box
Colour	Customerized	Case Material	Ht200
Delivery Time	2-4weeks	Certificate	CE
Warranty	12 Months	Transport Package	Wooden Case, Plywooden Case
Specification	112,133,146,173,200,225,250,280,315,330,375,420etc	Trademark	Tili
Origin	Changzhou, China	HS Code	8483409000
Production Capacity	50000pieces Per Year

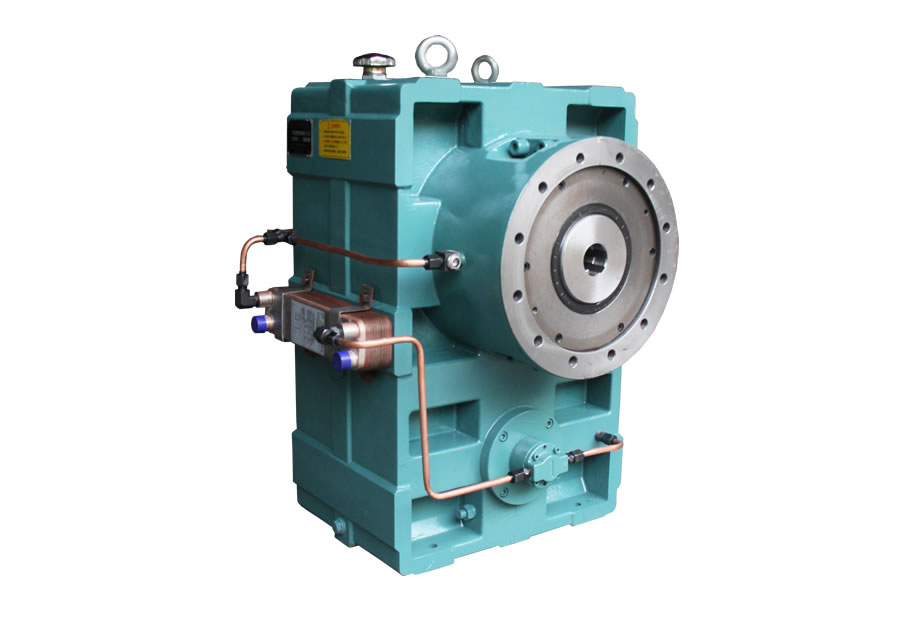

Zlyj Series Speed Reducer Gearbox for Single-Screw Plastic Rubber Extruder

Feature:

ZLYJ series reducer is a transmission component with hard tooth surface,with thrust package for plastic,rubber single-screw extruder.

Its characteristic is that the gears and shaft parts are made of high-strength alloy steel.

The gears are processed by carburizing, quenching, and gear grinding.

Gear accuracy is level 6. Tooth surface hardness is HRC54~62. A large-size thrust bearing is arranged at the front end of the hollow input shaft to withstand the axial thrust of the screw when it is working.

The whole machine has the characteristics of small size, high carrying capacity, stable transmission and low noise

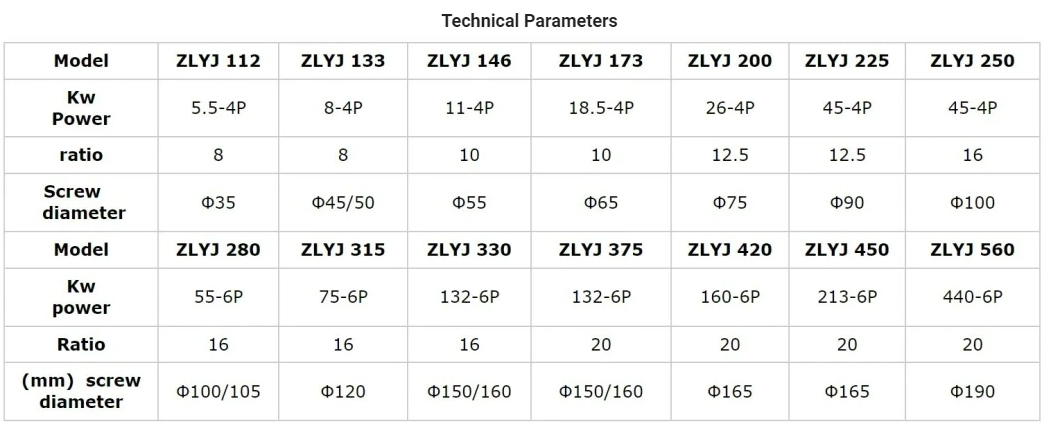

OVERVIEW

Product Name	Zlyj Series Speed Reducer Gearbox for Single-Screw Plastic Rubber Extruder
Gear material	20CrMnTi alloy steel
Color	Customerized
Brand of bearings	C&U bearing, ZWZ,LYC, HRB, NSK ,etc
Brand of oil seal	NAK or other brand
Surface hardness of gears	HRC54°~62 °
Machining precision of gears	6 Grade
Heat treatment	Carburizing, Quenching etc

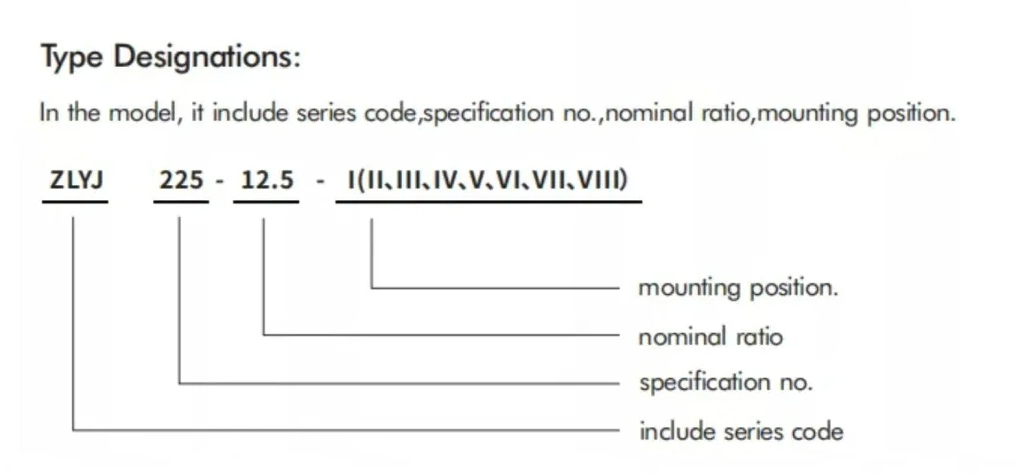

SIZE112,133,146,173,200,225,250,280,315,330,375,420,450,560

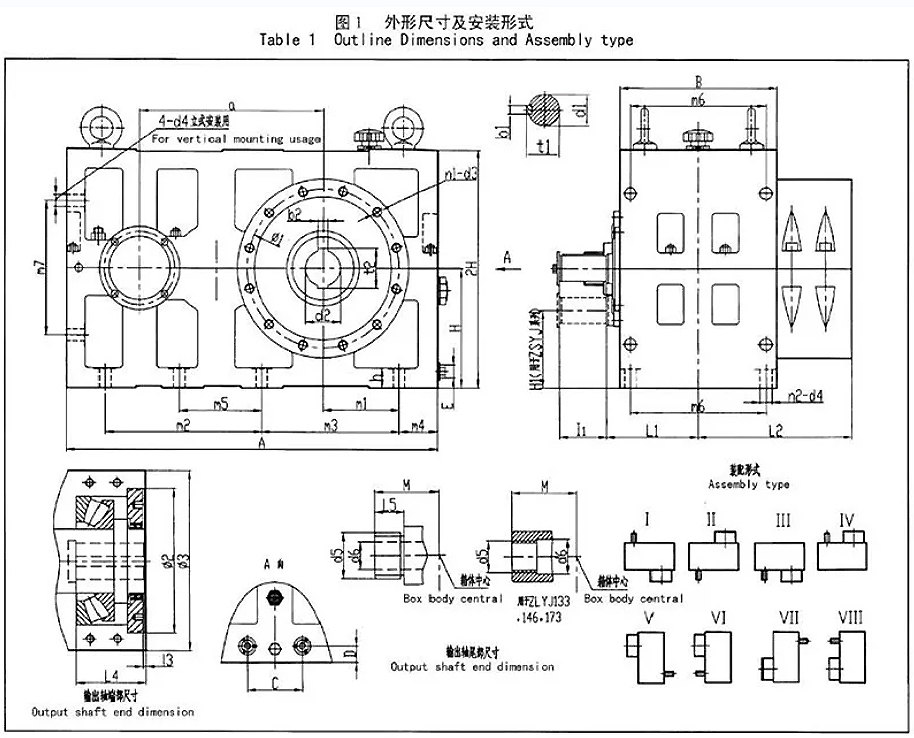

Item NO.	a	Overall Dimension					Anchor Installation Size									Input Shaft Size
Item NO.	a	A	B	H	H1	h	n2	d4	m1	m2	m3	m4	m5	m6	m7	L1	I1	d1(m6)	t1	b1
ZLYJ112	184	426	170	130		18	4	14	96		326	50		136	170	106	60	28	31	8
ZLYJ133	218	478	215	140		20	6	16	104	185	185	61		180	184	125	60	28	31	8
ZLYJ146	256	560	250	160		22	6	16	118	190	235	72		210	210	148	70	32	35	10
ZLYJ173	285	576	256	170		22	6	18	113.5	220	220	68		225	214	148	80	38	41	10
ZLYJ200	340	750	340	240		36	6	18	150	275	275	100		290	310	200	80	45	48.5	14
ZLYJ225	385	800	360	250		36	6	26	165	310	310	90		315	330	205	110	55	59	16
ZLYJ250	430	930	380	280		45	6	26	205	360	360	105		330	340	220	110	60	64	18
ZLYJ280	480	970	410	300		50	6	30	200	385	385	100		355	380	240	125	65	69	18
ZLYJ315	539	1160	450	350		55	6	30	260	450	450	130		390	460	250	140	75	79.5	20
ZLYJ330	575	1160	450	350		60	6	30	225	450	450	130		390	425	260	170	85	90	22
ZLYJ375	625	1280	466	400		60	8	32	250	475	500	165	265	400	500	265	170	85	90	22
ZLYJ420	695	1420	550	460		60	8	32	305	580	540	150	328	480	580	310	180	95	100	25
ZLYJ450	765	1550	600	500		60	8	32	300	600	600	190	300	520	550	350	210	100	106	28
ZLYJ630	1070	2000	770	630		80	8	48	400	850	800	200	450	670		430	165	120	127	32
ZSYJ450	765	1550	600	500	276	60	8	32	300	600	600	190	300	520		350	105	75	79.5	20
ZSYJ560	960	1850	610	580	324	80	8	48	390	730	780	170		510		355	130	95	100	25
ZSYJ630	1070	2000	770	630	350	80	8	48	400	850	800	200	450	670		430	165	110	116	28

Item NO.	Output Shaft Size				Output Shaft Tail Size				Thrust Package Connection Size							Cooling Pipe Joint
Item NO.	d2(H8)	t2	b2(F9)	L4	d5	d6	I5	M	L2	Φ1	Φ2(H7)	I3	Φ3	n1	d3	C	D	E
ZLYJ112	35	38.3	10	52	M16	18		125	203	185	160	8	210	6	M10
ZLYJ133	38	44.6	10*2	80	M18	20		137	205	205	180	8	230	8	M12
ZLYJ146	45	52.6	14*2	120	M18	20		167	245	230	200	8	260	8	M12			ZG3/8"
ZLYJ173	50	57.6	14*2	140	M20	25		167	250	260	230	8	300	8	M16	85	38
ZLYJ200	60	68.8	18*2	170	M85*4	40	50	250	330	300	270	8	350	12	M16	110	45
ZLYJ225	70	79.8	20*2	170		55		265	355	370	330	8	420	12	M20	120	45
ZLYJ250	80	90.8	22*2	180				285	380	370	330	8	420	12	M20	160	65
ZLYJ280	90	100.8	25*2	180				300	405	400	360	8	450	12	M24	160	50
ZLYJ315	100	112.8	28*2	185	M90*4	60		335	440	405	365	8	450	12	M24	160	55
ZLYJ330	110	122.8	28*2	220	M85*4		60	350	445	450	400	10	500	12	M24	160	55
ZLYJ375	110	122.8	28*2	255	M90*4			345	445	450	400	10	500	12	M24	160	55	ZG3/4"
ZLYJ420	120	134.8	32*2	270				370	535	580	500	10	660	12	M30	200	55
ZLYJ450	170	188.8	40*2	250				425	600	610	500	15	700	12	M30	200	60
ZLYJ630	180	200.8	45*2	340				520	760	720	650	25	805	12	M36	300	80
ZSYJ450	170	188.8	40*2	250				425	600	610	520	10	700	12	M36	200	60
ZSYJ560	160	178.8	40*2	300				435	670	720	620	25	805	12	M36	270	80
ZSYJ630	180	200.8	45*2	340				520	760	720	650	25	805	12	M36	300	80

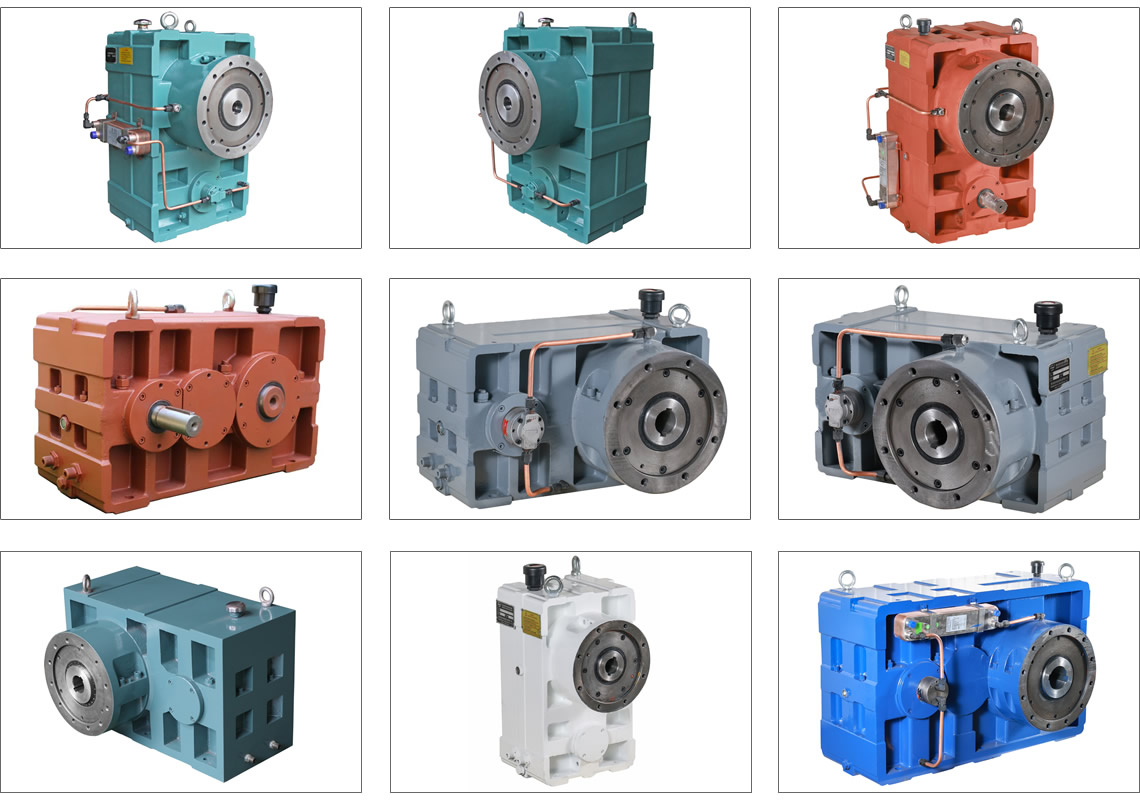

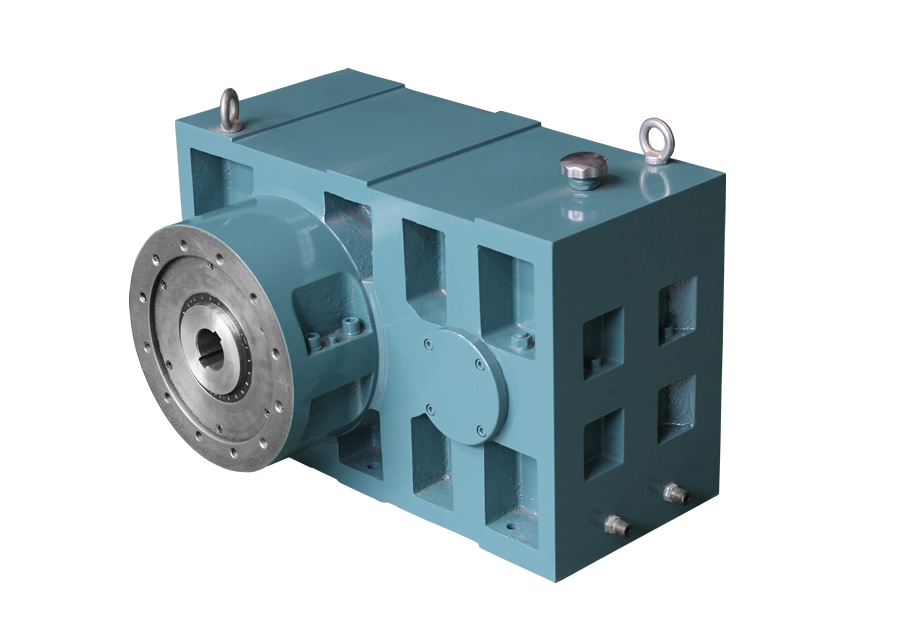

Detailed Photos

Certifications


Packaging & Shipping


Company Profile

< ABOUT TILI

< WORKSHOP

< QUALITY CONTROL

FAQ

Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing various series of reducer.

Q 2:Can you do OEM?
A:Yes, we can. We can do OEM for all the customers .if you want to order NON-STANDERD speed reducers,pls provide Drafts, Dimensions, Pictures and Samples if possible.

Q 3: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.

Q 4: Do you have inspection procedures for reducer?
A:100% self-inspection before packing.

Q 5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

Q 6:How to choose a gearbox? What if I don't know which gear reducer I need?
A:You can refer to our catalogue to choose the gearbox or we can help to choose when you provide,the technical information of required output torque, output speed and motor parameter etc. Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.

Q 7: What information shall we give before placing a purchase order?
A:a) Type of the gearbox, Size , Transmission Ratio, input and output type, input flange, mounting position, motor information and shaft deflection etc. b)Housing color.c) Purchase quantity. d) Other special requirements

Q 8:What is the payment term?
A:You can pay via T/T(30% in advance as deposit before production +70% before delivery
